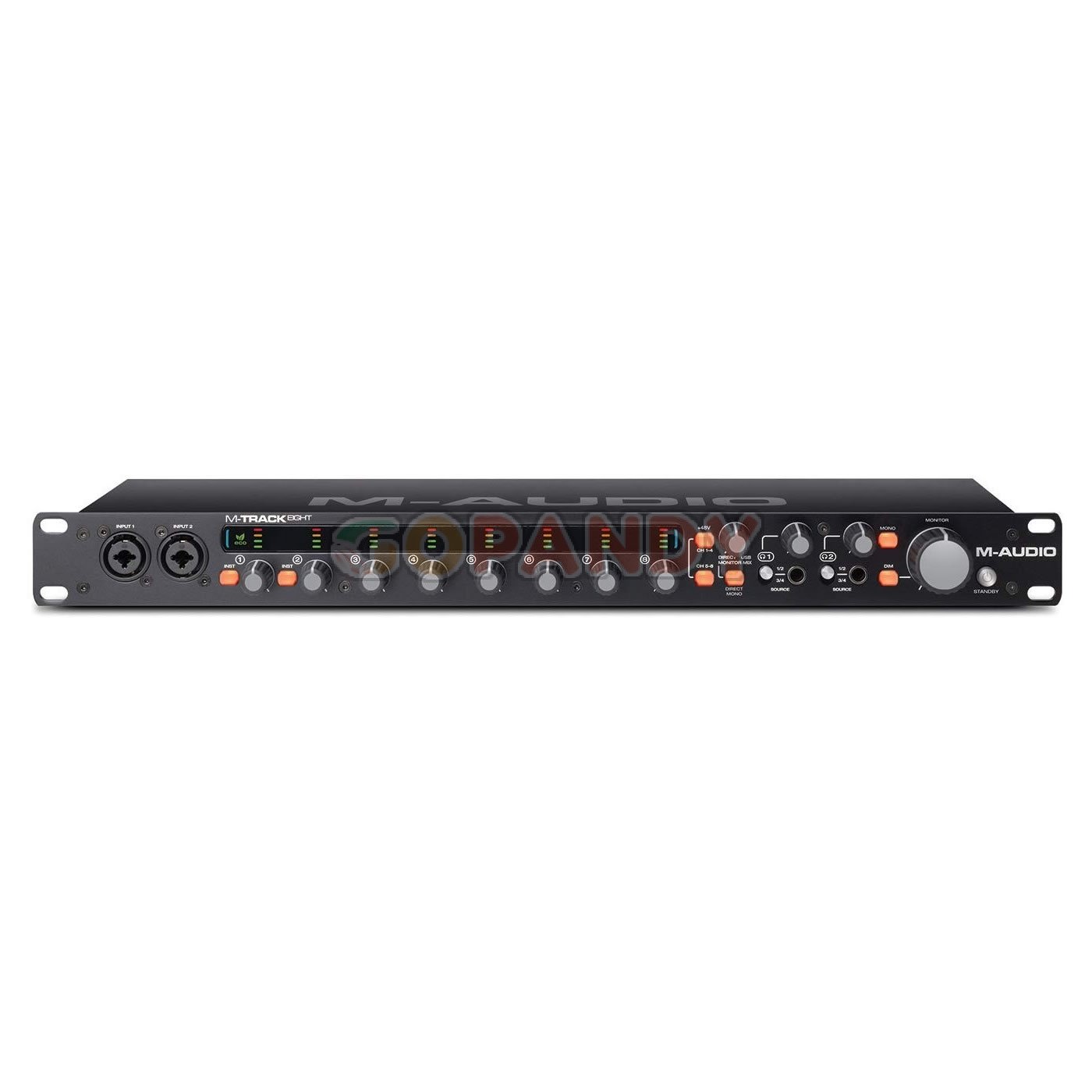

M-Track Eight – 8-Input USB Audio Interface/Sound Card from M-Audio
M-Track Eight from M-Audio is an 8-input USB audio interface that is designed for recording high-quality audio in your home or professional studio. Eight combo XLR+1/4″ inputs accommodate a multitude of sources, from phantom-powered microphones, to guitars, to keyboards. Eight balanced 1/4″ outputs offer versatile routing to monitoring and outboard equipment, plus it features dual headphone outs with selectable source for separate mixes and monitoring.
M-Track Eight features audio recording with up to 24-bit/96 kHz resolution, and also offers ultra-low latency monitoring of the input signal either through the speakers or headphones. The interface connects to your computer via USB 2.0 and easily integrates into your studio space with its standard 1U 19″ rack size.
Cubase 7 LE comes bundled with the M-Track Eight for out-of-the-box music creation, giving you a powerful software environment to record, edit, and mix your songs.
FEATURES
- 8-channel USB audio interface
- 8 XLR+1/4″ combo inputs with individual metering
- Pristine and precise audio recording with up to 24-bit/96 kHz resolution
- High-headroom inputs with Octane Preamp Technology
- Dedicated line-input circuitry for clean, professional recordings
- 2 front-panel instrument inputs for easy access
- Selectable phantom power (Channels 1-4; 5-8) for using condenser microphones
- Dual headphone outs with selectable source for custom mixes and monitoring
- 8 balanced 1/4″ outputs and dedicated control room output
- Zero-latency monitoring with USB/Analog Direct Balance control
- Standard 1U 19″ rack size with durable metal construction
- Includes Cubase 7 LE for out-of-the-box music creation and up to 8 channels of simultaneous audio recording
What's in the box
- M-Audio M-Track Eight – 8-Input USB Audio Interface
- USB Cable
- Limited 1-Year Warranty
Features
| Microphone Inputs | 1-8 (balanced XLR) |
| Frequency Response | 20 Hz - 20 kHz (+0.1 dB) |
| Dynamic Range | 111 dB (A-weighted) |
| Signal-to-Noise Ratio | 111 dB (1 kHz, +4 dBu, A-weighted) |
| THD | 0.002% (1 kHz, +4 dBu, -1 dBFS) |
| Mic Preamps | Preamp EIN: -132 dBu (max gain, 40 Ω source, A-weighted), -126 dBu (max gain, 150 Ω source, unweighted)Max Input Level: +12 dBu Sensitivity: -46 dBu Gain Range: 58 dB |
| Line Inputs | Type: 1–8 (balanced 1/4" TRS)Frequency Response: 20 Hz – 20 kHz (+0.1 dB) Dynamic Range: 112 dB (A-weighted) Signal-to-Noise Ratio: 111 dB (1 kHz, +4 dBu, A-weighted) THD+N: 0.002% (1 kHz, +4 dBu, -1 dBFS) Max Input Level: +16 dBu Sensitivity: -13 dBu Gain Range: 29 dB |
| Instrument Inputs | Type: 1–2 (unbalanced 1/4" TS)Frequency Response: 20 Hz – 20 kHz (+0.2 dB) Dynamic Range: 112 dB (A-weighted) Signal-to-Noise Ratio: 111 dB (1 kHz, +4 dBu, A-weighted) THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS) Max Input Level: +9 dBu Sensitivity: -21 dBu Input Impedance: 1 MΩ Gain Range: 30 dB |
| Monitor Output | Type: 1–2 (differential-balanced 1/4" TRS)Frequency Response: 20 Hz – 20 kHz (+0.1 dB) Dynamic Range: 112 dB (A-weighted) 110 dB (A-weighted, with Dim activated) THD+N: 0.003% (1 kHz, -1 dBFS) Maximum Output Level: +28 dBu +8 dBu (with Dim activated) |
| Line Outputs | Type: 1–8 (impedance-balanced 1/4" TRS)Frequency Response: 20 Hz – 20 kHz (+0.1 dB) Dynamic Range: 113 dB (A-weighted) THD+N: 0.004% (1 kHz, -1 dBFS) Maximum Output Level: +10 dBu Output Impedance: 51 ohm |
| Power | 19 V, 2.37 A, center-positive |
| Dimensions | 19.0 x 5.9 x 1.7" (48.3 x 15.0 x 4.3 cm) |
| Weight | 4.37 lb (1.98 kg) |
