DBX 231 Graphic Equalizer

43,500

  • 2 x 31-band, 1/3-octave EQ with Constant Q frequency bands
  • Switchable boost/cut ranges of +/-6dB or +/-12dB
  • 12dB per octave 50Hz low-cut filter
  • Front panel bypass switch
  • +/-12dB input gain range
SKU: A07748 Category:

7-days return policy offered. See Terms and Conditions for details.

Product Description

The DBX 231 dual 31-band graphic equalizer piles on high-performance features despite its amazingly low price! Giving you two 31-band channels of 1/3-octave EQ, the 231 brings the kind of top-notch performance you’d expect from a DBX product to everyone.

With a lineage extending back to the revered 12 and 20 Series graphic equalizers, the dbx 231 easily lives up to the dbx reputation at a price point which can find a home in the tightest of budgets. Besides including two 31-band channels of 1/3-octave equalization, the 231 also offers +/-6 or +/-12dB boost/cut range; XLR, 20mm faders and 1/4″ inputs; nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. The result of dbx’s meticulous attention to detail and top-quailty componentry? Exceptional sound, performance, and reliability!

The 2-Series represents a major step forward in the performance of entry-level graphic equalizers. From its amazing 10Hz to 50kHz frequency response, to its 108dB dynamic range and internal toroidal transformer, the 2-Series offers-out-of-this-world specifications with a down to earth price point. Sure to find a home in the studio, on tour and with installed sound venues, the 2-Series is destined to take its rightful place in the lineage of great dbx signal processors. With such affordable quality, there’s no longer any excuse for compromising your sound.

Features

  • 2 x 31-band, 1/3-octave EQ with Constant Q frequency bands
  • Switchable boost/cut ranges of +/-6dB or +/-12dB
  • 12dB per octave 50Hz low-cut filter
  • Front panel bypass switch
  • +/-12dB input gain range
  • 4-segment LED ladders for monitoring output levels

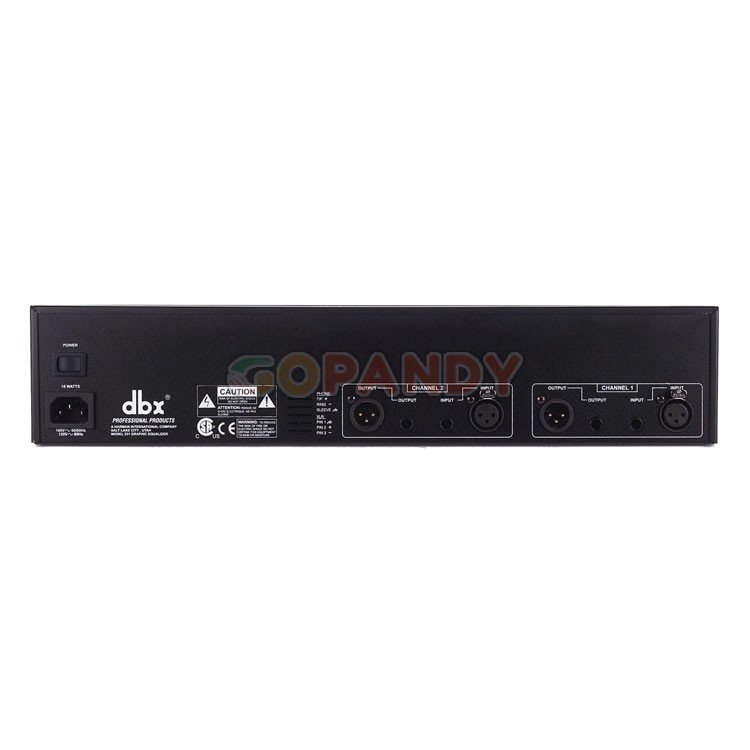

  • XLR and TRS inputs and outputs
  • Internal toroidal transformer
  • Frequency response of under 10Hz to over 50kHz
  • Dynamic range of greater than 108dB

What’s in the box

  • DBX 231 Graphic Equalizer
  • AC Power Cable
  • Limited Two (2) Year Warranty

Features

Input Connectors1/4" TRS, female XLR (pin 2 hot)
Input TypeElectronically balanced/unbalanced, RF filtered
Input ImpedanceBalanced 40k ohm, unbalanced 20k ohm
Max Input>+21dBu balanced or unbalanced
CMRR>40dB, typically >55dB at 1kHz
Output Connectors1/4" TRS, male XLR (pin 2 hot)
Output TypeImpedance-balanced/unbalanced, RF filtered
Output ImpedanceBalanced 100 ohm, unbalanced 50 ohm
Max Output>+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth20Hz to 20kHz, +0.5/-1dB
Frequency Response<10Hz to >50kHz, +0.5/-3dB
Dynamic Range108dB
Signal to Noise Ratio90dB
THD+Noise<0.004%
Interchannel Crosstalk<-80dB, 20Hz to 20kHz
Bypass SwitchBypasses the graphic equalizer section in the signal path
Low cut SwitchActivates the 50Hz 12dB/octave high-pass filter
Range SwitchSelects either +/- 6dB or +/-12dB slider boost/cut range
Operating Voltage100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption15W
Power ConnectorIEC receptacle
