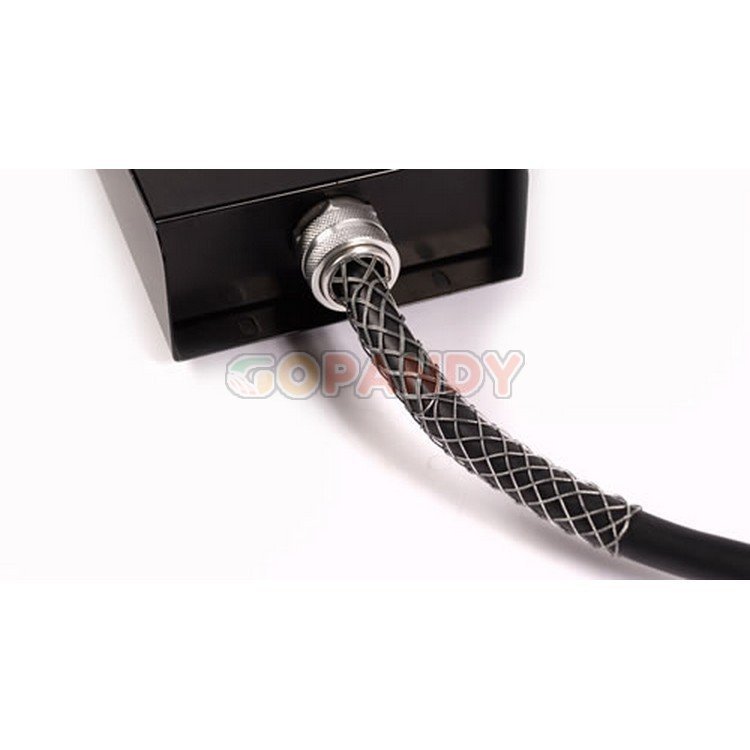

24 channel multicore cable with stage box and fan featuring Neutrik connectors.

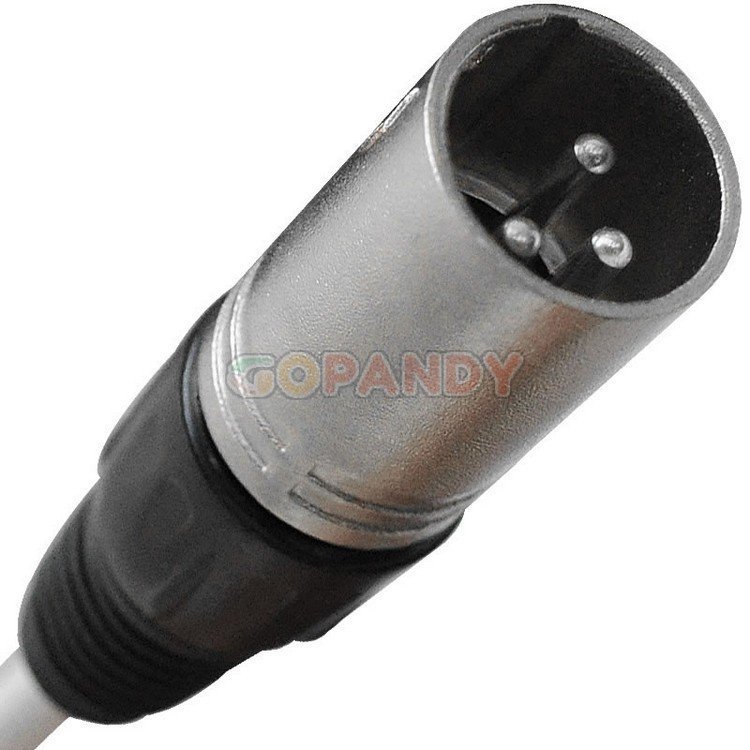

Features 20 XLR balanced send and 4 return channels. Instruments (DI Box) and microphones are plugged into the send inputs marked 1 to 20 on the stagebox. The signals are carried through the multicore to 20 corresponding XLR(m) number coded connectors.

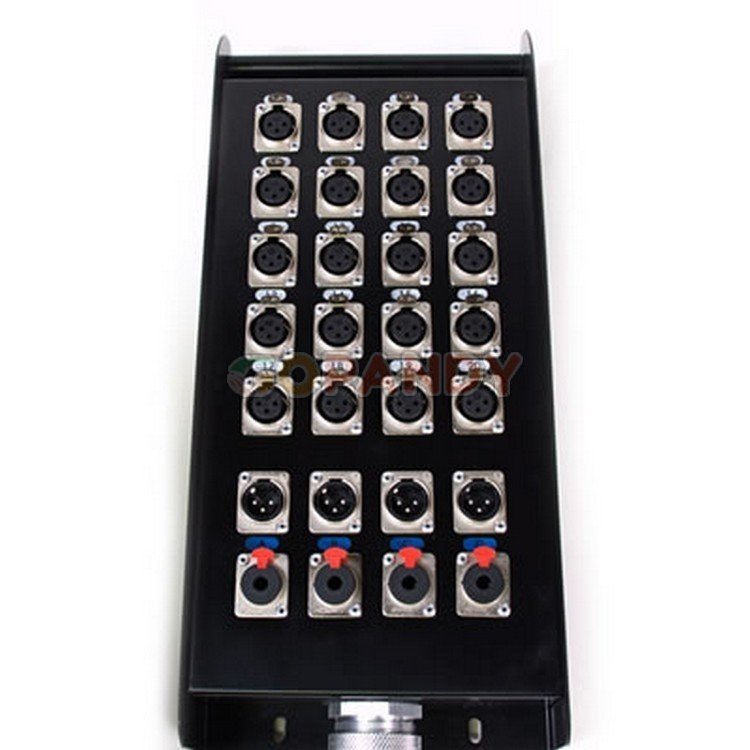

There are both 4x XLR(m) and 4x 1/4″ TRS return outputs on the stage box, the four return channels are marked A to D. These channels connect to 4x XLR(f) connectors which are used to take the output signals of the mixer back to the stage box for connections with amplifiers and speakers.
