Pioneer DJ DJM-S3 2-Channel DJ Mixer for Serato

270,000

  • Built-In Sound Card
  • 24-Bit / 48 kHz
  • Sound Color Filter FX
  • Phono and Line Inputs per Channel

7-days return policy offered. See Terms and Conditions for details.

Product Description

The Pioneer DJ DJM-S3 2-Channel DJ Mixer is a professional 2-channel mixer for Serato DJ, and is well suited for DJing in clubs, concerts, music studios, and live events. Designed for use with Serato DJ, the mixer is ready to go out of the box. Simply connect the included USB cable, and launch the optional Serato DJ software. Each input channel includes stereo RCA for both line, as well as RCA phono inputs for turntables with ground. For outputs, the unit features stereo balanced XLR, and unbalanced RCA connections.

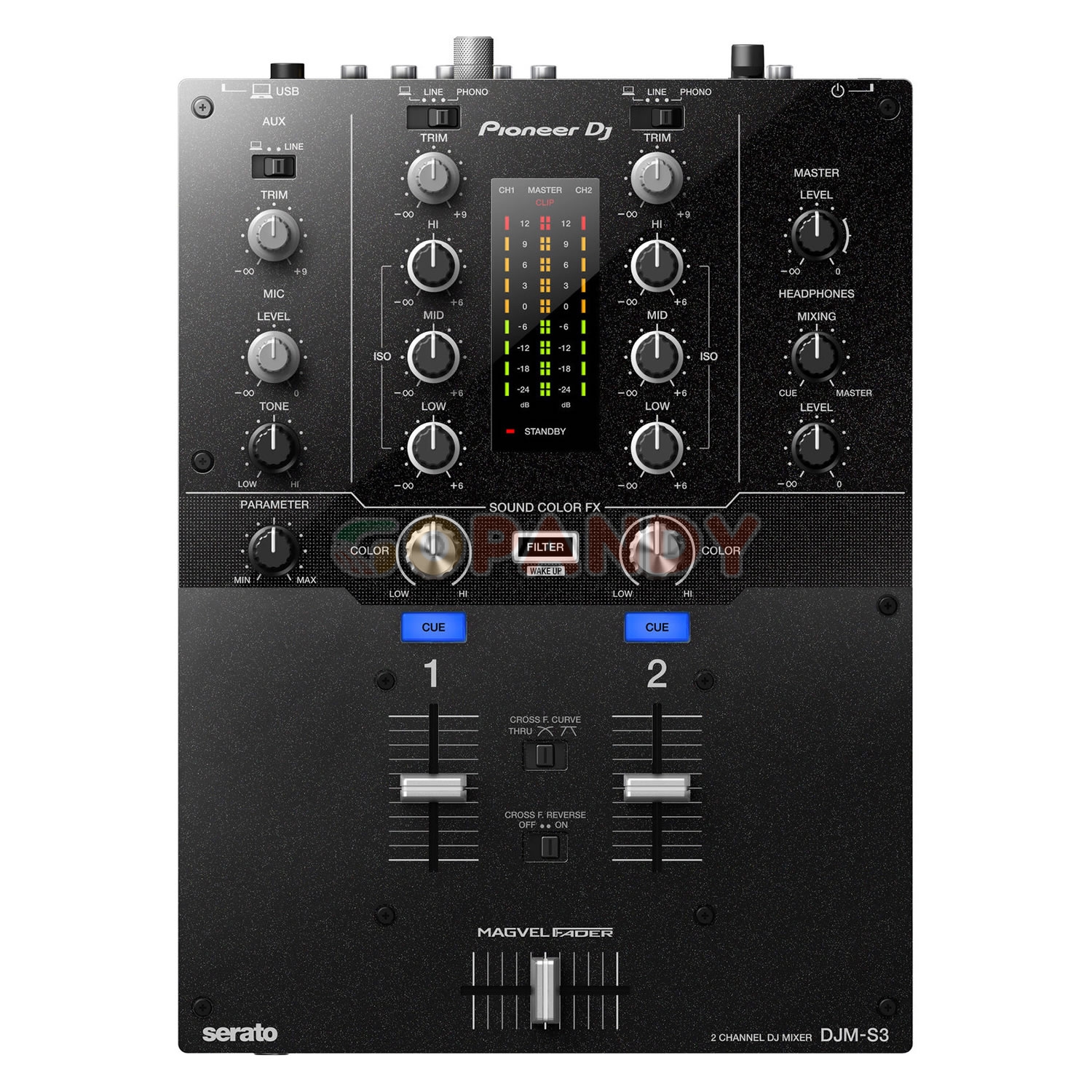

The mixer’s front panel offers a variety of controls with each deck offering trim, 3-band ISO EQ, and a Sound Color filter knob offering high-pass and low-pass effects. The integrated Magvel crossfader is accurate, smooth, and durable for more than 10 million movements. Additionally, the crossfader offers advanced performance functions including selectable cross-fade curves and cross-fader reverse. Additional features include a microphone input with dedicated hi/low tone control, trim control, and level knob, as well as an auxiliary input for adding an additional stereo input via RCA. The mixer offers two headphone outputs including 1/4″ and 1/8″ for convenience. The Pioneer DJ DJM-S3 ships with a power cord, AC adapter, and a USB cable.

Built-In Sound Card

Connect your PC/Mac with a single USB cable to use Serato DJ, and mix and scratch your digital files via turntables, and the Serato DVS Control Vinyl, or compatible multi-players

Magvel Crossfader

Scratching becomes effortless with the highly responsive Magvel Crossfader. Sharing the same quality as the DJM-900NXS2, the fader is accurate, smooth, and durable for more than 10 million movements

Independent Channel Filters

Turn the filter knob on each channel to create unique textures. By twisting the parameter knob you can adjust resonance, and add tension to your performances

High-Quality Sound

Hear the true, high-quality sound of your tracks whether you’re playing from digital or analogue sound sources thanks to the mixer’s dithering technology

Flexible Connectivity

The XLR terminals deliver premium sound quality, and the signal GND firmly holds ground wires from analogue turntables

Two Headphone Outputs

The DJM-S3 lets you plug both a 1/4″ stereo jack, and an 1/8″ mini jack. Pick your size or attach 2 headphones when playing back-to-back

What's in the box

  • Pioneer DJ DJM-S3 2-Channel DJ Mixer for Serato
  • Power Cord
  • AC Adapter
  • USB Cable
  • Limited 1-Year Warranty

Features

Mac System RequirementsMac OS X 10.10 or later (latest update)
i5: 1.07 GHz 32-, 64-bit
i7: 1.07 GHz 32-, 64-bit
Memory (32-, 64-bit): 4 GB
USB: USB 2.0 port
Free HHD Space: 5 GB
Windows System RequirementsWindows 7, 8.1, 10 (latest service pack)
i5: 1.07 GHz 32-, 64-bit
i7: 1.07 GHz 32-, 64-bit
Memory (32-, 64-bit): 4 GB
USB: USB 2.0 port
Free HHD Space: 5 GB
Display1280 x 720
Input ConnectorsChannel 1 (Phono): Stereo RCA
Channel 1 (Line): Stereo RCA
Channel 2 (Phono): Stereo RCA
Channel 2 (Line): Stereo RCA
Aux (Line): Stereo RCA
Mic: 1/4" / 6.35 mm TS
Turntable Ground: Knurled grounding post
Output ConnectorsMaster 1: 2 x XLR
Master 2: Stereo RCA
Headphone: 1/4" / 6.35 mm, and 1/8" / 3.5 mm TRS
USB1 x USB Type-B port
Sampling Rate48 kHz
AD/DA Conversion24-bit
Frequency ResponseLine: 20 Hz to 20 kHz
Signal to Noise RatioPhono: 80 dB
Line: 94 dB
Mic: 77 dB
Aux: 90 dB
Total Harmonic DistortionLine - Master 1: 0.005%
Standard Input LevelPhono: -52 dBu
Line: -12 dBu
Mic: -52 dBu
Aux: -12 dBu
Output LevelStandard Output Level
Master 1: +6 dBu
Master 2: +2 dBu
Phones: +8 dBu

Rated Output Level
Master 1: +25 dBu
Master 2: +21 dBu
ImpedanceInput Impedance
Phono: 47 kOhms
Line: 47 kOhms
Mic: 8.5 kOhms
Aux: 47 kOhms

Load Impedance
Master 1: 10 kOhms
Master 2: 10 kOhms
Phones: 32 Ohms

Output Impedance
Master 1: 1 kOhm or lower
Master 2: 390 Ohms or lower
Phones: 2 Ohms or lower

Rated Output Load Impedance
Master 1: 10 kOhms
Master 2: 10 kOhms
Cross TalkLine: 90 dB
EqualizerHI: -∞ to +6 dB (20 kHz)
MID: -∞ to +6 dB (1 kHz)
Low: -∞ to +6 dB (20 Hz)

Microphone HI: -12 dB to +12 dB (10 kHz)
Microphone Low: -12 dB to +12 dB (100 Hz)
AC AdapterPower Requirements: 100 to 240 VAC, 50/60 Hz
Rated Current: 0.6 A
Rated Output: 12 VDC, 2 A
Power ConsumptionStandard: 12 VDC, 600 mA
Standby: 0.5 W
Operating Temperature & Humidity41 to 95°F / 5 to 35°C
5 to 85% (non-condensing)
Dimensions (W x H x D)9.1 x 4.2 x 12.6" / 231.1 x 106.7 x 320.0 mm
Weight6.6 lb / 3.0 kg
