Samson QH4 4-Channel Headphone Amplifier

32,000

  • 4-Channel Stereo Headphone Amplifier

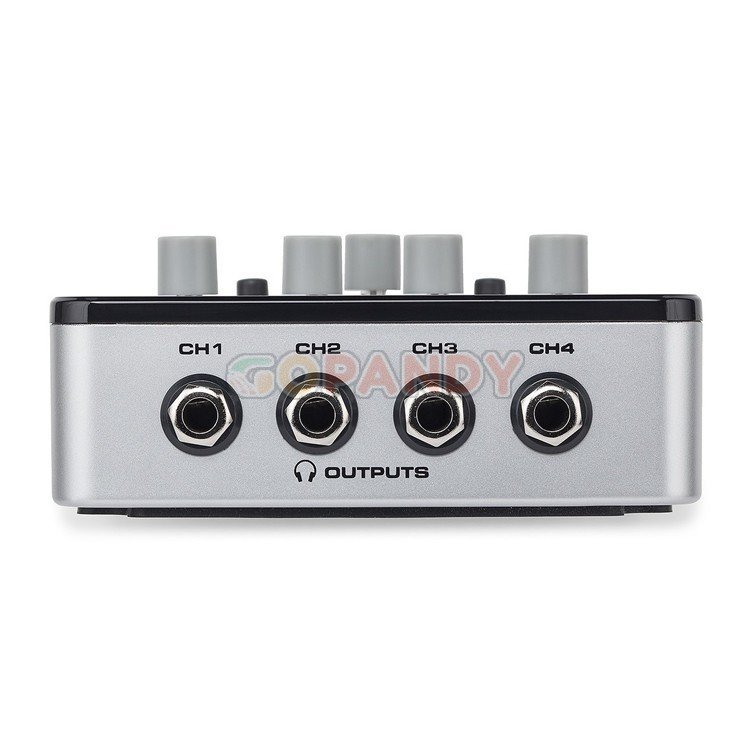

  • 4 Stereo 1/4″ Headphone Outputs
  • 4 Discrete Stereo Amplifiers
  • 564mW Per Channel
  • Separate Volume Control on Each Channel
  • For Headphones Between 16 & 600 Ohms
  • 2 Balanced 1/4″ Input Jacks
  • Stereo 3.5mm Auxiliary Input & Output
  • Master Volume, Mute & Mono Summing
  • Suitable for Studios & Portable Studios
SKU: A11952 Category:

7-days return policy offered. See Terms and Conditions for details.

Product Description

Split one audio source into four discrete channels with the QH4 Headphone Amplifier from Samson. Simply route audio into the device through two 1/4″ balanced inputs—or one stereo 3.5mm auxiliary TRS input—and then, through its multiple stereo 1/4″ jacks, you can plug in up to four pairs of headphones, all the while manipulating the individual volume of each pair with four on-board knobs.

You also get a few master controls as well: a master volume allows you to attenuate or boost all four channels at once, while a master mute button will instantiate silence for every pair of headphones. Additionally, a master mono button will come in quite handy should you want to check the stereo phase of your mix through headphones.

To facilitate the connection of multiple QH4s—thereby achieving more than four headphone outputs by daisy-chaining units together—the QH4 features a stereo 3.5mm input jack and a stereo 3.5mm output jack. This high-power amplifier will work with headphones operating between 16 and 600 Ohms and can handle 564mW per channel. As such, is a suitable addition to your project studio, desktop workstation, or portable studio setup.

Specifications

TypeStereo headphone amplifier
Frequency Response17 Hz to 47 kHz (-3 dB)
Maximum Output8.3 dBu, 1% THD+N, loaded 16 R
Dynamic Range22 dB, 22 kHz, BW
Noise Floor-114 dBu, 22 kHz BW, unweighted
Input Connectors2 x 1/4" balanced inputs 1 x stereo 1/8" / 3.5 mm unbalanced TRS input
Output Connectors4 x stereo 1/4" unbalanced 1 x stereo 3.5 mm unbalanced TRS output
Controls1 x master volume knob 1 x master mute button 1 x master mono knob 4 x channel volume knobs
Headphone Impedance Range16 to 600 Ohms
Power Handling564 mW per channel
Power15 VDC
